2.8mm Security Waterproof IP Camera PoE 1080P With Metal Case
- Video Resolution: 1080P (1920x1080)/960P (1280X960)/ 720P HD (1280 x 720 pixels) Optional
- Use Location: Outdoor / Indoor
Use For: Standard and Professional
Image Sensor: 1/2.7'' SC2135 For 1080P ;OH65 For 960P/ 1/4" OH42 CMOS For 720P
Resolution: 2.0MP 1080P/1.3MP 960P / 1.0MP 720P
Min Illumination:Color: 0.01Lux F1.2, B/W: 0.08 Lux F1.2
Type: Glass Lens
Size: M12 2.8mm 3.6mm 6mm Optional
- Aperture: f 1.2
Communication Interface: 1 RJ45 10M / 100M ethernet port
DC: Yes (Not Included )
Server: P2P Server/ DDNS server
- Image Compression:H.264
Image Frame Rate: 720P 25fps/960P 22fps /1080P 15fps
Resolution: 1920*1080/1280X960/1280 x 720
Bit Rate: 32 Kbps ~ 8 Mbps
Image Settings: Saturation, brightness, contrast adjustable through client software or web browser
Video Parameters: Contrast, Brightness, Saturation, Hue

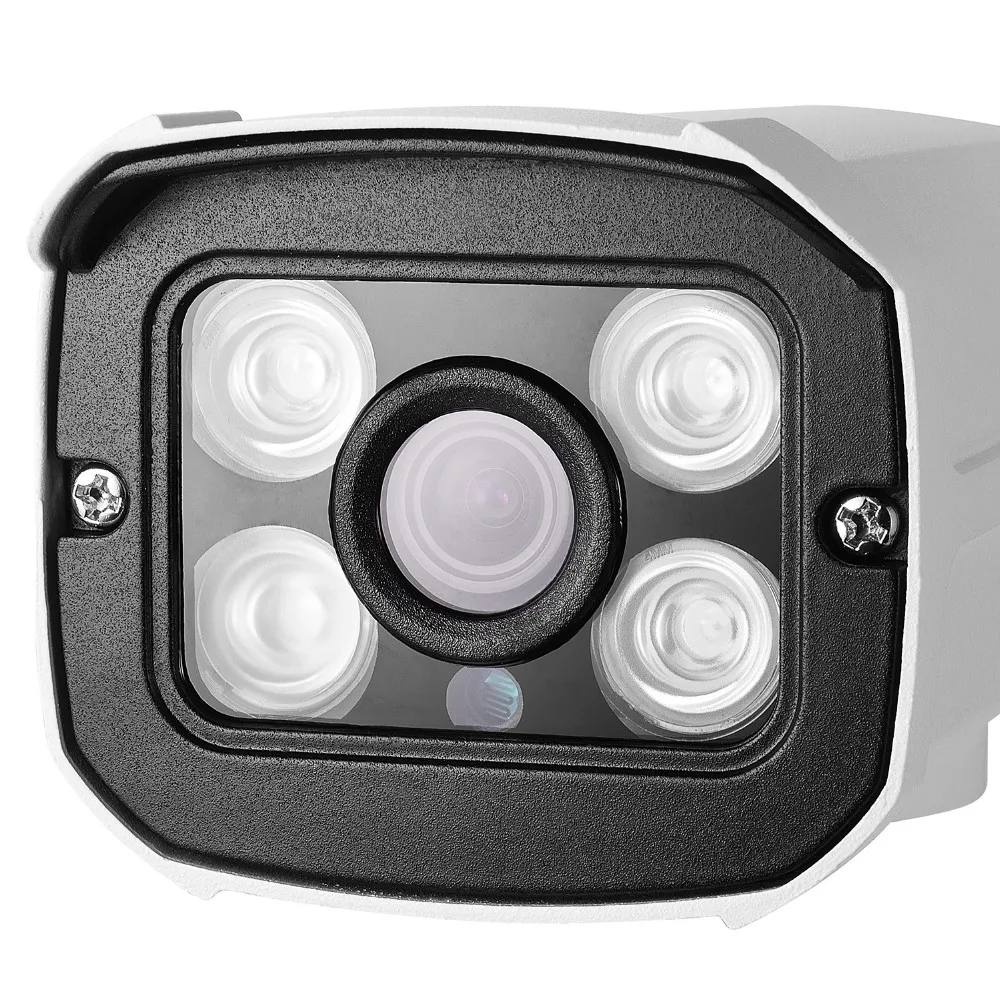

IR LED: 4pcs High efficient ARRAY LE with max 30M IR Distance
Material: Metal Waterproof
Power: DC 12V For DC 12V Version / 48V PoE Switch or Injector For 48V PoE Version (NOT INCLUDED )

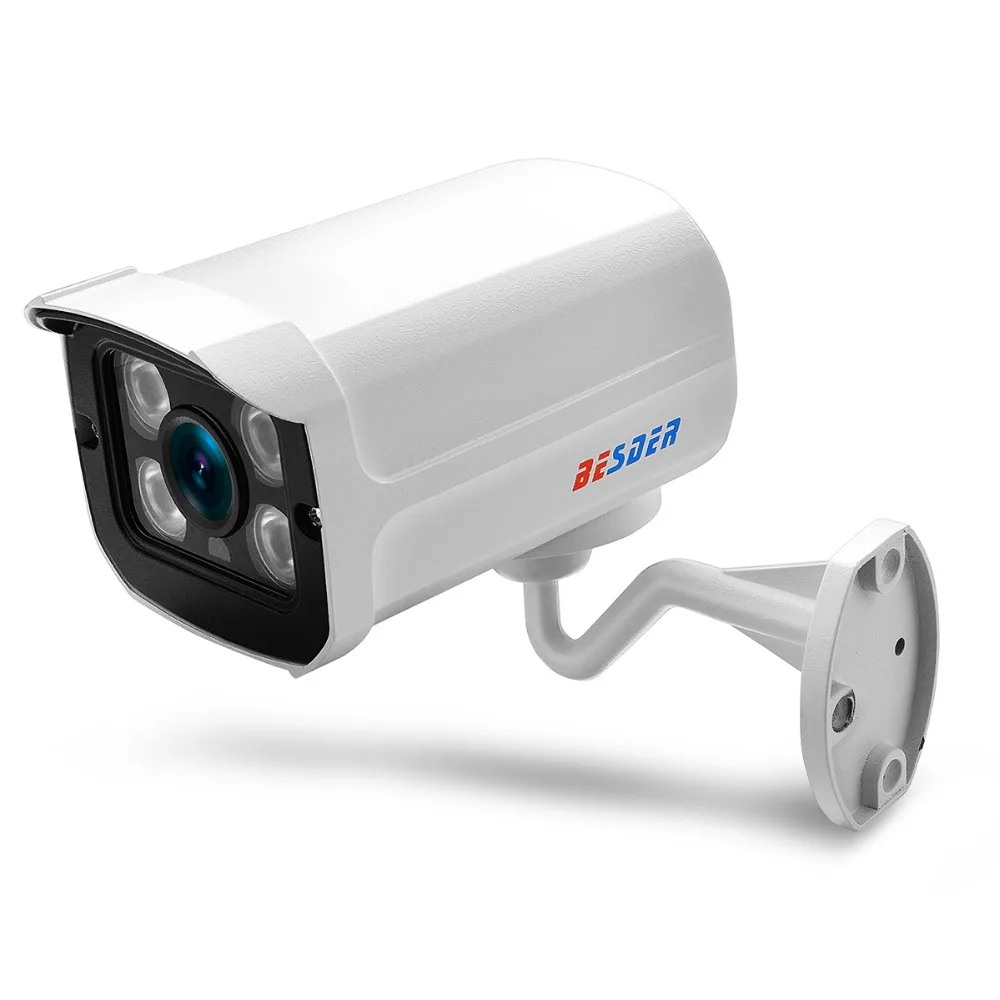

- Bullet Camera
- CD With manual included
There are two versions ,one is DC 12V ,the other 48V PoE Version.
For the DC 12V Version,it has two interface ,one is DC Plug ,the other ethernet connector,
which work with 12V DC power supply 1A-2A (Not Included).
For the 48V PoE Version ,it just has one ethernet connector which work with 48V PoE Switch or Injector.
Q:What’s the default ip address of the camera ?
F: 192.168.1.10 Username : admin Password : null ( empty ) !
Q: Does the camera supports Motion Detect,FTP,Email alarm, RTSP and so on ?
F: Yes ! All the IP Cameras we are selling supports these functions .
- Please Setup the motion detection in the CMS software .
- We suggest the Sever-U and FileZilla FTP Server to upload the image.
- For the Email alarm,please use Email server which supports SMTP ( Hotmail ,Yahoo not support SMTP ,it not supports Gmail temperately since the server problem ) .
F: What’re the ports information of the cameras ?
Q : ONVIF 2.0 Port 8899 ;RTSP Port 554 ;HTTP Port 80;Media Port 34567
F:Does the camera support IE ,Chrome ,Firefox and so on ?
Q: Since the plug-in problem ,for website interface IP address URL,ONLY IE supports Multi Language . Chrome,Safari just support Chinese .
For cloud server XMEYE.NET ,it supports multi language
Q:When I finish the steps to add the camera to the CMS list,why it notify “ Can’t find the Device “ even I can see the default ip address 192.168.1.10 in the menu .
F: It is the IP Address conflict ,the default ip address is not in the same network segment as your router.
Please click “Edit Device “ to change the camera’s ip address to make them in the same network segment !
For example ,if your router’s ip address is 192.168.0.1 ,then you need to change the camera’s ip address to 192.168.0.XX .
